Series Bearing

Material steel, stainless steel, cast steel

Consult immediately

Inquire now

Detail

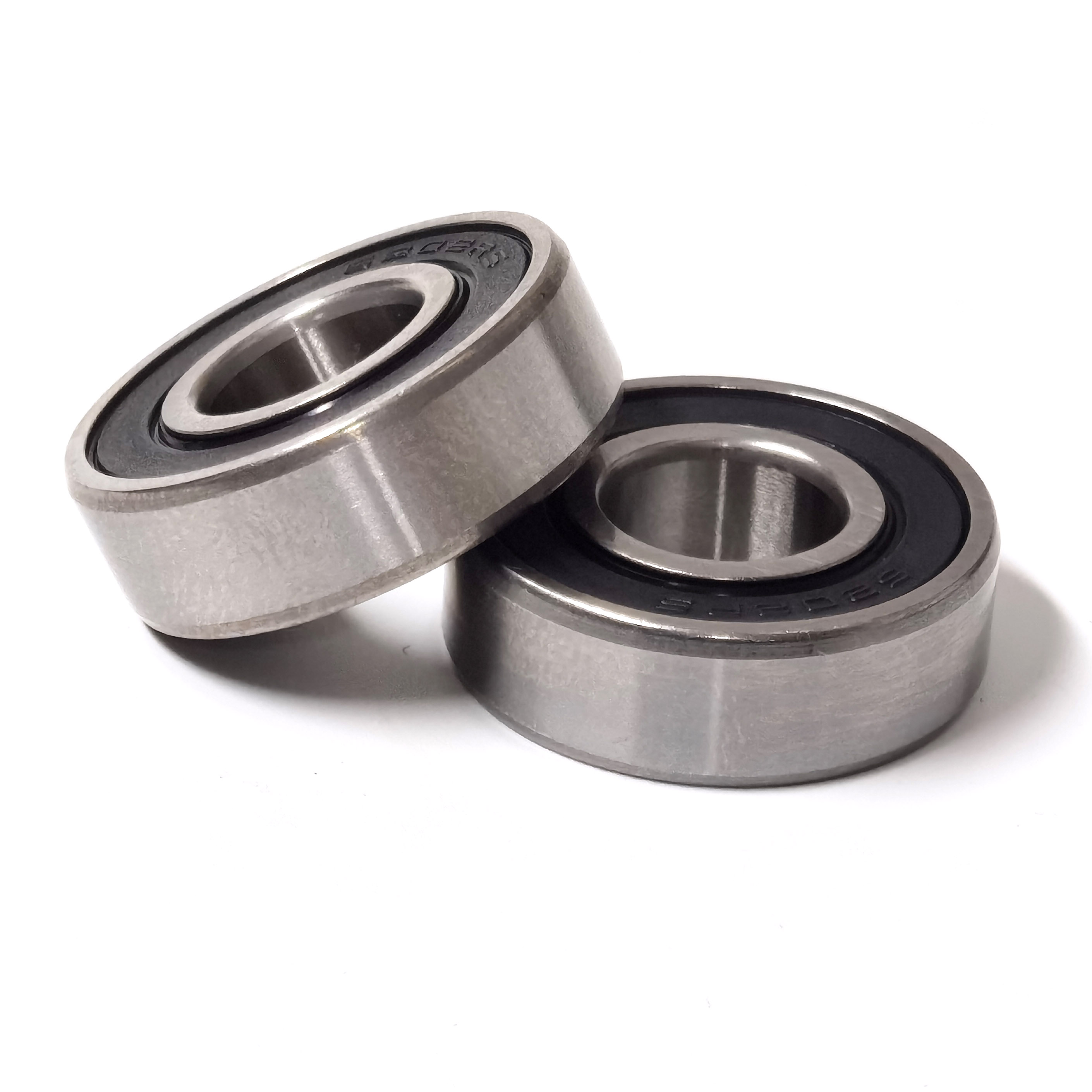

Deep Groove Ball Bearings of 60 Series


Bearing number	Bore(d)	O.D(D)	Width(B)	Chamfer (R)	Load Rating	Maximum Seed	Kg/pc
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil
603	3	9	4	0.2	0.189	0.571	45000	55000	0.0018
604	4	12	4	0.2	0.97	0.36	43000	51000	0.002
605	5	14	5	0.2	1.33	0.505	39000	46000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	22000	30000	0.014
6000	10	26	7	0.3	4.55	1.96	20000	28000	0.019
6001	12	28	7	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.84	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	13000	17000	0.08
6006	30	55	13	1	13.2	8.3	12000	15000	0.116
6007	35	62	14	1	16	0.3	10000	13000	0.155
6008	40	68	15	11	16.8	11.5	8000	11000	0.185
6009	45	75	16	1	21	15.1	7200	9000	0.231
6010	50	80	16	1	21.8	16.6	6400	7800	0.25
6011	55	90	18	1.1	28.3	21.2	5700	7000	0.362
6012	60	95	18	1.1	29.5	23.2	5000	6300	0.385
6013	65	100	18	1.1	30.5	25.2	5000	6000	0.408
6014	…	…	…	…	…	…	…	…	…
6022	110	170	28	2	82	73.5	3800	4500	2.09
☆We reserve the right to change specifications and other information included in this catalogue without notice.
